Introduction

One of the most important scientific advances in clinical dentistry 40 years ago was the creation of Osseo integrated implants [1]. Because of their distinctive qualities, including corrosion resistance, biocompatibility, low density, and high modulus of elasticity, titanium, and its alloys have been employed in dentistry as supports and retainers for prosthetic equipment since the 1980s [2]. Due to titanium and its alloys' significantly higher elastic moduli and strength compared with human bones, stress shielding and implant failure might occur. E = 10–16 GPa is the titanium elasticity modulus, which is 8-10 times larger than bone [3]. To reduce the implants’ modulus to a level comparable to that of human bones, researchers have tried to create new types of titanium alloys. On the other hand, the pore fraction and form of titanium can change its mechanical properties, and the stress-shielding effect is reduced. The porous titanium with a wide range of porosity can be produced using powder metallurgical procedures [4]. At low temperatures, Ti exhibits two allotropic states in thermodynamic equilibrium; at low temperatures, it has a compact hexagonal close packing (HCP), which is referred to as the matrix phase, while above 883^oC, it does have a body-centered cubic structure (BCC) referred to as the transition temperature from pure titanium to pure titanium [5]. Most additional elements work to stabilize one phase or the other. Examples of α-stabilizers include Al, O, N, and C. In contrast, two types of β-stabilizers, isomorphous and -eutectoid have as their principal components, respectively, Mo, V, Y, Nb, and Ta, as well as Fe, W, Cr, Si, Ni, Co, Mn, and H. If properly treated, β- Isomorphous Ti alloys of implant have recently attracted interest due to the practical small elastic modules made with these metals. Some Ti alloys contain the “neutral” elements Zr and Sn, which are not thought to affect phase stability [6]. The equilibrium between the existing phases and interstitial element diffusion has a significant impact on the mechanical characteristics of titanium alloys [7]. The most significant benefit of β alloys over the other titanium alloys is their superior hardenability. They can be easily aged and solubilized, unlike β and α alloy to produce uniform precipitation [8]. The phase transitions that occur during heating and cooling as a result of the two allotropic titanium forms provide the basis for the heat treatment of titanium alloys. It is feasible to create desired structural modifications, which would subsequently modify their properties [9]. CPT and its alloys, primarily cobalt-based alloys and Ti-6Al-7Nb, Ti-6Al-4V, Co-Ni-Cr-Mo, Co-Cr-Mo, stainless steels (ABNT 316L steel), and noble alloys based on gold are the principal alloys utilized in biomedical applications. Due to the toxicity level seen in alloys including vanadium and aluminum (associated with neurological diseases in their composition), titanium alloys for biomedical purposes have been produced without these toxic elements, using materials such as niobium, tantalum, zirconium, molybdenum, and iron [10]. That led to alloys such as Ti–13Nb–13Zr, Ti–29Nb–13Ta–4,6Zr [11], Ti–15Mo [12], and Ti-Y [13]. The elastic modulus mismatch between biomaterials and surrounding bones is the key reason for the successful fixation of implantation materials to bone tissue remains a challenge. However, for the embedded materials to function for a considerably longer time, or perhaps for a lifetime without loss or revision surgery, they should be strong and resilient enough to withstand the physiological demands imparted. An effective balance between rigidity and strength is also required to complement the bone. Porous materials have been introduced to further lower the elastic modulus of alloys based on titanium. The elastic modulus is a quality that is difficult to change, as we are all aware. In addition, in the current work, targeted elements can be added to change the elastic modulus. Otherwise, porosity in the alloys used to create the final product determines the elastic modulus [14]. Numerous experiments are conducted to make Ti alloys containing yttrium. Ti alloys containing yttrium are biocompatible [12]. The recent studies have focused on β-type alloys minimizing the stress-shielding effect by having low elastic moduli. These alloys are created using stabilizers and non-cytotoxic materials such as molybdenum, tantalum, niobium, zirconium, yttrium, and manganese indium [12-17]. Modern alloys have an elasticity modulus that is three to four times greater than that of human bone, which can be uncomfortable for the patient and increase the risk of implant failure. This is due to a condition called stress shielding [18], in which the implant's heavy mechanical strain causes degradation and decreased bone density, leaving the bones exposed. The therapeutic effectiveness of dental implants is improved by the yttrium addition to Ti due to improvements in biocompatibility, mechanical characteristics, and corrosion resistance [19].

It has been attempted to do an experimental study on Ti-15Mo-xY alloys. The literature lacks sufficient information on how mechanical properties and stages relate to one another. Therefore, a thorough structural analysis of this process is required to ensure a thorough grasp of the mechanical properties. The goal of the current work is to create a low-modulus β- type Ti-Mo alloy and examine its microstructure and mechanical properties following the yttrium addition to suggest it as a substitute material for biomedical applications.

Experimental procedure

In this investigation, the powdered forms of the elements (titanium, molybdenum, and yttrium) were used, all of which were obtained from Lemandou Ltd. Co. China. Table 1 presents the results of particle size analyzer (Nano-Brook 90Plus) and X-ray fluorescence (XRF) (Bruker S8 Tiger) tests performed on the starting materials to determine their purity.

Preparation of sample

Powder metallurgy was used to create Ti-15Mo-xY alloy and titanium alloy preforms. Alloys were fabricated via powder metallurgy, which entails three main processes: blending, cold compaction, and sintering. The powders of Ti-15Mo and xY were mixed in a ball mill for 8 hours.

The reinforcing particles were blended into the matrix phase to lessen the heterogeneous effects of the alloy. To make green preforms, cold compression was performed using the necessary quantity of mixed powder. Balls and powder are mixed at a weight ratio of 20:1 and a speed of 300 revolutions per minute. The powder was compacted using the punch and die. The powder was carefully measured and placed in the hollow die, and then the punch was set on top. By applying a known pressure of 850 MPa for 3 minutes at a constant loading rate (0.3 t/s) in a 100-ton hydraulic press, a green compact of varying dimensions was formed [20].

Graphite powder was sprinkled on both the inside and outside of the die and punched to act as a lubricant during the compacting process [19]. One of the main functions of this lubricant is to reduce the amount of wear and tear on the punch and die caused by the powder particles' contact with them. The green compacts were easily released from the die thanks to this lubricant. The green compacts were heated at 950 °C in an inert environment (Argon) at a rate of 5 °C per minute for 6 hours before being cooled in the furnace [21].

These are the stages found in sintering samples (Figure 1):

1. Rating increase of 5 °C per minute during heating from ambient to 500 °C.
2. Requiring a 500-degree °C (1 hour) soak time.
3. Rating increases by 5 °C/min when heating from 500 to 950 °C.
4. Six hours in a 950 °C water bath.
5. In a furnace with a constant flow of Argon, the temperature is lowered gradually to room temperature.

Nitrogen, hydrogen, and oxygen were removed from the sintering atmosphere to prevent the composite from reacting unnecessarily. Table 2 lists four samples made with all of the powders used to make Ti-15Mo-xY and its composites.

Characterization of the prepared specimens

The X-ray diffraction (XRD) analysis was utilized to determine the crystal structures and phases present in the generated specimen (Shimadzu XRD-60000 X-Ray diffractometer). The radiation parameters were 20°-80° 2, 40 kV, 30 mA, and Cu K (=1.5409 A). Wet grinding with grades of (600), (800), (1000), and (2000), as well as polishing with diamond paste (1 m particle size), were employed to prepare the specimens for microstructure examination using a light optical microscope (Olympus/542037.Japan) and SEM type (CARL ZEISS ULTRA PLUS GEMINI FESEM). A solution of "10 g FeCl³⁺ 25 mL HCL+100 mL distilled water" [22] was used to etch the specimens. The X-ray diffraction (XRD) was used to determine the phases and crystal structures of the specimen before and after yttrium was introduced (Shimadzu XRD-60000 X-Ray diffractometer). Devices for measuring Brinell hardness (Digitals Micro Brinell Hardness Tester TH 717) with an ASTM-required load of 187.5 KP for 10 s. (E10-15). The sintered samples can be analyzed for porosity using the standards set out in ASTM B327. The compressive testing was performed with a standardized, electronic universal testing machine under computer control (WDW-200KN).

Analysis of variance

The statistical method known as variance analysis (ANOVA) can be used to identify discrepancies in the means of communication between different groups in an experiment. When there are multiple experimental groups for a given independent (categorical) variable, analysis of variance (ANOVA) becomes warranted. The ANOVA terminology for independent variables is "factors," and the aggregations inside "factors" are "levels." Using a computerized analysis of variance (ANOVA) approach, researchers can determine how much variation in an experiment's response can be attributed to changes in individual parameters. Using analysis of variance, the effect of each input parameter on the machining process can be determined. The influence of yttrium addition on the properties of Ti-15Mo alloy is examined using the SPSS 26 statistical tool.

Results and Discussion

X-Ray diffraction analysis (XRD)

The powder of titanium, molybdenum, yttrium, and their alloys were X-ray diffraction analyzed to better understand their microscopic structure (Ti-15Mo, Ti-15Mo-XY). The XRD results for Ti-15Mo alloy with and without yttrium addition are displayed in Figure 2. The structure of Ti-15Mo-xY alloy sintered at 950°C is characterized by the formation of -Ti, Y, Y₂O₃, MO₃, and TiO₂ phases, as indicated by the indexing of standard cards representing JCPDS-ICDD 44-1288 and 29-1360. This finding is congruent with Wang et al. [13], who established that Mo and Y are necessary β -phase stabilizers.

Figure 2: a) X-ray diffraction analysis for; Ti-15Mo, Ti-15Mo-0.5Y, Ti-15Mo-1.0 Y, and Ti-15Mo-1.5Y alloys, b) X-ray diffraction analysis for Mo powder, c) X-ray diffraction analysis for Ti powder, and d) X-ray diffraction analysis for Y element powder

Microstructure characterization for sintering alloys

The yttrium atoms were effective at refining the grains by segregating or precipitating at the grain boundaries in the optical microscope images of the microstructures of the new alloy after the addition of the yttrium element to the base metal. This can be seen clearly in 1.5 percent yttrium more than others because yttrium's ability to refine grains increases with increased yttrium content and this finding is in agreement with Zhang et al. [23]. The XRD test verified that the alloy's matrix is β phase. It was seen that the grain of β-Ti-15Mo became smaller and the microstructure was refined with the rise of Y concentration [24]. Yttrium additions will be at grain borders and refine-phase grains, as depicted in Figure 3A, B, C, and D.

The morphologies of both alloys are not equiaxed structures according to SEM. However, it is demonstrated that yttrium refines the equiaxed grains by segregating the grains and making the granules finer. The SEM images of Ti-Mo-xY revealed that Ti-Mo concurred with Won et al. [25] that precipitates along grain boundaries significantly increase.

Due to the high sensitivity of SEM images to the chemical composition, sintered samples exhibit a multiphase structure, with the β-Ti phase supporting the XRD findings. The grain boundaries and pores in the etched alloys were visible in the SEM images of various sizes. Figures 4A, 4B, 4C, and 4D displayed the SEM images of 4C and Zero alloys at various magnifications. Since a more uniform oxide film is more likely to form on small-grained microstructures in the passivated metals due to a more refined grain boundary distribution and triple junctions, the Ti-Mo-xY alloys exhibit an element of yttrium that is more uniform, well-distributed, and homogenous yttrium element. This is because of the good mixing and sintering temperature. Accordingly, Gollapudi [26] is correct.

The physical and mechanical properties

Porosity

Only a few larger pores or pore clusters are visible in alloys with an addition of about 0.5 percent in the Ti-Mo specimens with the addition of fine yttrium powder (Figure 5). However, as the yttrium content increases, the sizes of these pores increase, leading to an increase in porosity. The porosity test result was confirmed by the results from the optical light microscope, and it agrees with Khilfa [19].

Figure 3: Microstructure for A) Ti-15Mo, B) A (Ti-15Mo-0.5Y) alloys, C) B (Ti-15Mo-1.0Y) alloys, and D) C (Ti-15Mo-1.5Y) alloys after sintering and etching (100 x)

Figure 4: SEM images for etched; A) Zero (Ti-15Mo) alloy, B) A (0.5% Y) alloy, C) B (1.0%) alloy, and D) C (1.5% Y) alloy

Figure 5: Change in the porosity after the yttrium addition

Using finer yttrium powder results in a little lower increase in porosity, which is in agreement with Limberg & Ebelb's [27] findings. Yttrium has a coefficient of thermal expansion (CTE) that is about greater than Titanium. Due to a noticeable thermal shrinkage, a somewhat large CTE mismatch could cause disintegration and the creation of porosity during cooling following extrusion.

The titanium alloy without the yttrium addition exhibits density more than it does with the addition because the yttrium generates porosity, which leads to a less compacted alloy, which results in a loss in density. This is due to the uneven form of the colony borders.

Table 3 provides the descriptive statistics for surface porosity for the four groups, with group Zero having the lowest mean value (17.8%) and group C alloy having the greatest mean value (23.7 percent).

The POST HOC test was employed for multiple comparisons between each pair of study groups since results in Table 4 for the test of homogeneity of variances (Levene's Statistic) indicate that the P-value was greater than 0.01 and that the data were normally distributed throughout the groups.

There was a highly significant difference between the groups, according to the ANOVA test reported in Table 5, P=0.01 at 3 degrees of freedom.

The hardness of specimens (Zero alloy and Ti-15Mo-xY with different concentrations) was compared using the multiple comparison test (POST HOC TEST), and all results showed that the hardness of the C alloy group was higher than that of the other groups with a highly significant difference and the large variability or difference found in the 1.5 Y concentration, as exhibited in Table 6.

Hardness measurements

Table 4 shows the graph of Brinell's hardness values for the β-type Ti-Mo-xY alloy (x = 0.5, 1.0, and 1.5 wt. percent) biomedical alloys (Figure 6). It can be seen that the hardness values of the β-type Ti-Mo-xY alloy biomedical alloys vary when Y is added. The hardness of Ti-Mo alloy is (341.65HB), and the yttrium addition improved the hardness and the hardness value as the yttrium percentage rose. The hardness of the A, B, and C alloys, which are illustrated in Figure 6, are 405.33, 435.76, and 510.05, respectively.

Figure 6: Change in hardness after the addition of yttrium

In a traditional casting technique, oxygen diffuses quickly through the liquid melt, making it simple for yttrium oxide to develop through a liquid-solid interface interaction. Another practical method of obtaining yttrium oxide is through the decomposition of supersaturated solid solutions of the rare earth element in the matrix. However, yttrium will scavenge oxygen from the matrix during the sintering process at solid-solid interfaces under the control of the interfacial kinetics. Therefore, the absence of sufficient oxygen in the environment prevents the yttrium-rich particles from producing enough Y2O3. On the other hand, Y-Ti-O solid solution may develop because at the sintering temperature Ti is soluble in yttrium.

According to a prior work by Court et al. (1988), only nonstoichiometric lanthanum oxides can occur during the annealing process of rapidly solidified Ti-La alloy by oxidizing metallic lanthanum precipitated during the rapidly solidified processing [28]. This shows that the internal oxidation of rare earth elementals in a solid-state process can produce rare earth-rich particles more easily than stoichiometric rare earth oxides. The only way for Y to scavenge more oxygen from the matrix and generate oxides is if the Y-rich particle-matrix interface is destroyed and a new interface is created.

Furthermore, Naka et al. (2010) noted that Y₂O₃ can dissolve and reprecipitate as a result of the shifting of grain boundaries. Moreover, it has been demonstrated that the moving grain boundary can draw solute from the matrix and boost local solute concentrations [29].

Both alloys became denser, which greatly improved their strength. However, the yttrium oxides in the Ti-Mo alloy with yttrium addition were formed as a result of the continued disintegration of the Y-rich particles, sufficient diffusion, and reactivity between Y and O in the surrounding environment [30].

The oxides, which are harder than the matrix and will reinforce the Ti alloy by preventing dislocation movement and crack growth, will increase the strength of the Ti-Mo-Y alloy. Likewise, as a result of the creation of oxides continuing to consume oxygen from the matrix, the Ti-Mo-xY alloy strengthened by greater yttrium addition can have better hardness and compressive strength due to the production of yttrium oxides in the matrix.

Table 7 indicates the descriptive statistics for surface hardness for the four groups, with group Zero having the lowest mean value (341.65 HB) and group C alloy having the greatest mean value (510.05 HB).

The POST HOC test was employed for multiple comparisons between study groups since the results in Table 8 for the test of homogeneity of variances (Levene's Statistic) indicate that the P-value was more than 0.01 and that the data were normally distributed throughout the groups.

ANOVA test seen in Table 9 reveals that there was a highly significant difference among the groups P≤ 0.01 at 3 degrees of freedom.

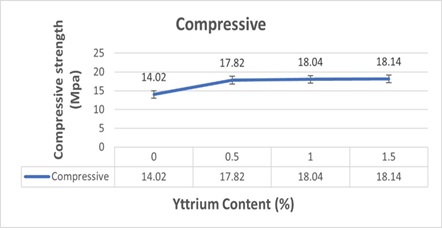

Figure 7: Change in compressive strength after the addition of yttrium

The hardness of specimens (Zero alloy and Ti-15Mo-xY with different concentrations) was compared using the multiple comparison test (POST HOC TEST), and all results showed that the hardness of the C alloy group was higher than that of the other groups with a highly significant difference and the large variability or difference found in the 1.5 Y concentration, as demonstrated in Table 10.

Compression test

The compressive strength of Ti-Mo alloy is improved when yttrium is introduced. When yttrium is added to titanium alloy in elemental form, some of which dissolves into the molten alloy and some reacts with oxygen from titanium powders or/and the atmosphere to form Y₂O₃ particles, which is confirmed by the XRD result showing Y₂O₃ formation. The C (Ti-Mo-1.5Y) alloy has the highest compressive strength value among the other alloys, as can be displayed in Figure 7. Therefore, it would be reasonable to predict that preventing dislocation movement across Y₂O₃ phases in alloys employing a dispersion mechanism would improve the mechanical properties of the alloy. The strong particles may prevent the dislocations from sliding, and more dislocations gather close to the Y₂O₃ particles. As a result, because Y₂O₃ particles are stronger than the matrix, substantially more applied tension is placed on them. As a result, the addition of Y₂O₃ particles increased the compressive strength, with the improvement depending on the yttrium percentage of the alloy.

The POST HOC test was employed for multiple comparisons between study groups since the test of homogeneity of variances (Levene's statistic) in Table 12 indicates that the P-value was greater than 0.01 and that the data were normally distributed throughout the groups.

There was a highly significant difference between the groups, as shown by the ANOVA test presented in Table 13, P=0.01 at 3 degrees of freedom.

The hardness of specimens (Zero alloy and Ti-15Mo-xY with different concentrations) was compared using the multiple comparison test (POST HOC TEST) as shown in Table 14, and all results showed that the hardness of the C alloy group was higher than that of the other groups, with a highly significant difference and the large variability or difference found in the 1.5 Y concentration.

Conclusion

Yttrium addition to Ti-15Mo alloy was fabricated through the powder metallurgy technique and was investigated for porosity, compressive strength, and hardness. The experimental investigations were carried out through the tests and the following conclusions are acquired.

1. It is observed that the increase in porosity percent of the manufactured alloys with 0.5, 1.0, and 1.5 wt. % of Y in comparison to the Ti-15Mo due to the addition of yttrium in the matrix phase.
2. It is observed that an increase in the compressive strength and hardness of alloys made with 0.5, 1.0, and 1.5 wt. % of Y as compared with Ti-15Mo due to the effect of yttrium addition into the matrix phase.
